Everything You Need To Know About Hybrid Water Heaters
Are you tired of high electric bills from your water heater? If you want to replace an aging unit or slash your energy costs, hybrid electric heat pump water heaters might be your answer. When properly sized for your home, they can potentially reduce your energy use by up to 70% while delivering the same reliable hot water.
Considering making the switch? Find a qualified plumber in your area who has experience with heat pump water heater installations.
Water Heater Selector Quiz
Need Help From A Pro?
A. O. Smith water heaters are professionally installed by local independent contractors.

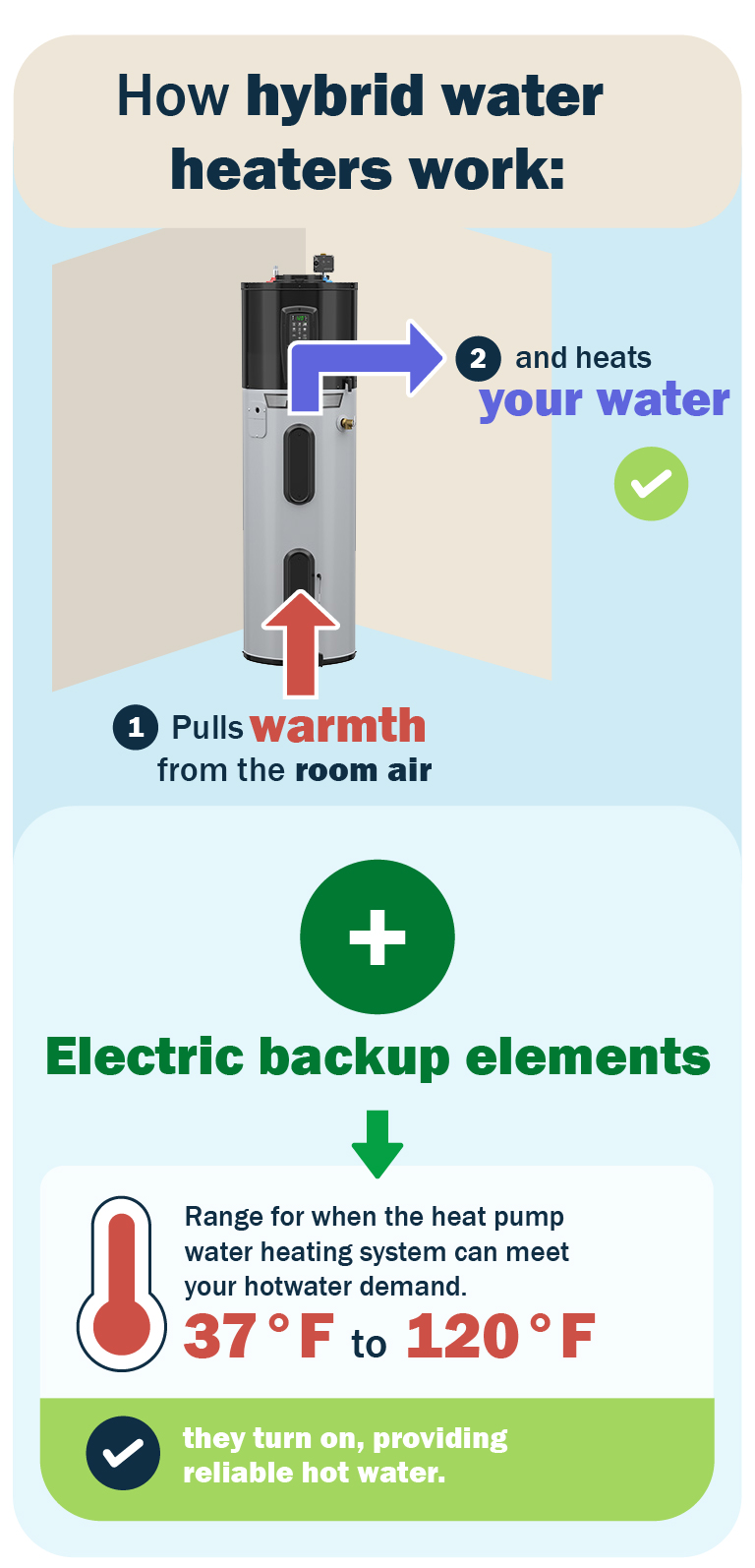

What Are Hybrid Water Heaters and How Do They Work?
Think of how an air conditioner removes heat inside your home and releases it outside. A hybrid water heater, also called a hybrid electric heat pump water heater, works like a reverse air conditioner. It pulls heat from the air around it and transfers it into your water tank. This process moves existing heat rather than creating new heat. The system uses heat from your basement, garage, or utility room to heat your water. Even when the air feels cool to you, there's plenty of heat available for the system to use.
A hybrid water heater combines heat pump technology with electric backup elements. When the heat pump water heating system can't meet your hot water demand or temperatures fall outside the 37°F to 120°F operating range, the backup elements automatically turn on, providing reliable hot water.
Wondering if a plug-in heat pump water heater could work for your home? Check with a local installer about your electrical setup and space requirements.
Benefits of Hybrid Heat Pump Water Heaters
Heat pump water heaters can save you hundreds of dollars every year on your electric bill. But the savings don't stop there. You'll also help the environment and may qualify for tax credits.
Energy Savings
Heat pump water heaters can reduce your operating costs by up to 70% compared to standard electric water heaters. If your family spends $800-900 per year heating water, you could see costs drop to around $200-300 per year when properly sized for your home. That's $600 or more in annual savings.
Over 10 years, these savings can add up to $6,000 or more, helping to make up for the higher upfront cost. Many homeowners see their heat pump water heater pay for itself within 5-7 years.
Federal Tax Credits and ENERGY STAR® Certification
You can save even more money with federal tax credits for heat pump water heaters, available through December 31, 2025. Here's what you need to know:
- Get up to $2,000 in tax credits (30% of the total standard cost, including installation).
- Combine with up to $1,200 in other qualified home energy improvements.
- Use manufacturer code A5X5 on Form 5695 when filing your taxes.
- Heat pump water heaters must be ENERGY STAR® certified to qualify for tax credits.
Environmental Impact: Reducing Your Carbon Footprint
Heat pump water heaters use 70% less energy than regular electric water heaters. This means they need less electricity from power companies. The energy savings are like taking a car off the road for six months each year. As power companies use more clean energy like solar and wind, these water heaters help the environment even more.
Hybrid Water Heater Sizes and Capacity Options
Heat pump water heaters come in 40, 50, 66, and 80-gallon sizes to match different household needs. The larger tank sizes help make sure busy households always have enough hot water. Choosing the right size depends more on your family's hot water habits than just the number of people in your home.
A 50-gallon unit works well for smaller families or homes with moderate hot water use. The 66-gallon models handle busy households with multiple showers, dishwashers, and washing machines running at the same time. The 80-gallon option gives you plenty of capacity if you have large bathtubs, multiple bathrooms, or take long showers.
Not sure which size is right for your home? Use A. O. Smith's residential water heater sizer to get recommendations based on your specific hot water usage patterns.
Installation Requirements and Considerations
Heat pump water heaters need plenty of space around them for air flow. You'll want about 450 cubic feet of free space around the unit. Basements and garages are popular spots because they have the room these units need. For smaller spaces like utility closets, ducting kits are available to bring in air from adjacent rooms.
Space Requirements and Professional Installation
These units are bigger than regular water heaters because of the heat pump parts on top. You'll also need to plan for water drainage since these units produce some water as they work. Professional installation makes sure all the electrical connections and drainage work correctly. Many contractors now get special training on installing these water heaters.
Upfront Investment vs. Long-Term Savings
The math works in your favor over time:
- Heat pump water heaters cost more upfront than standard electric water heaters.
- You typically get your money back in 3-6 years through energy savings.
- Federal tax credits, utility rebates, and lower bills can help pay for the unit.
- Units usually last 12-15 years with regular maintenance.
- Years of continued savings after the unit pays for itself.
Rebates & Tax Credits
Rebate and incentive programs provide savings to consumers for the purchase of water heaters that meet certain energy efficiency standards.
*When filing a federal tax return, include A. O. Smith's Qualified Manufacturer (QM) code A5X5 on tax form 5695.
Need Help From A Pro?
A. O. Smith water heaters are professionally installed by local independent contractors.

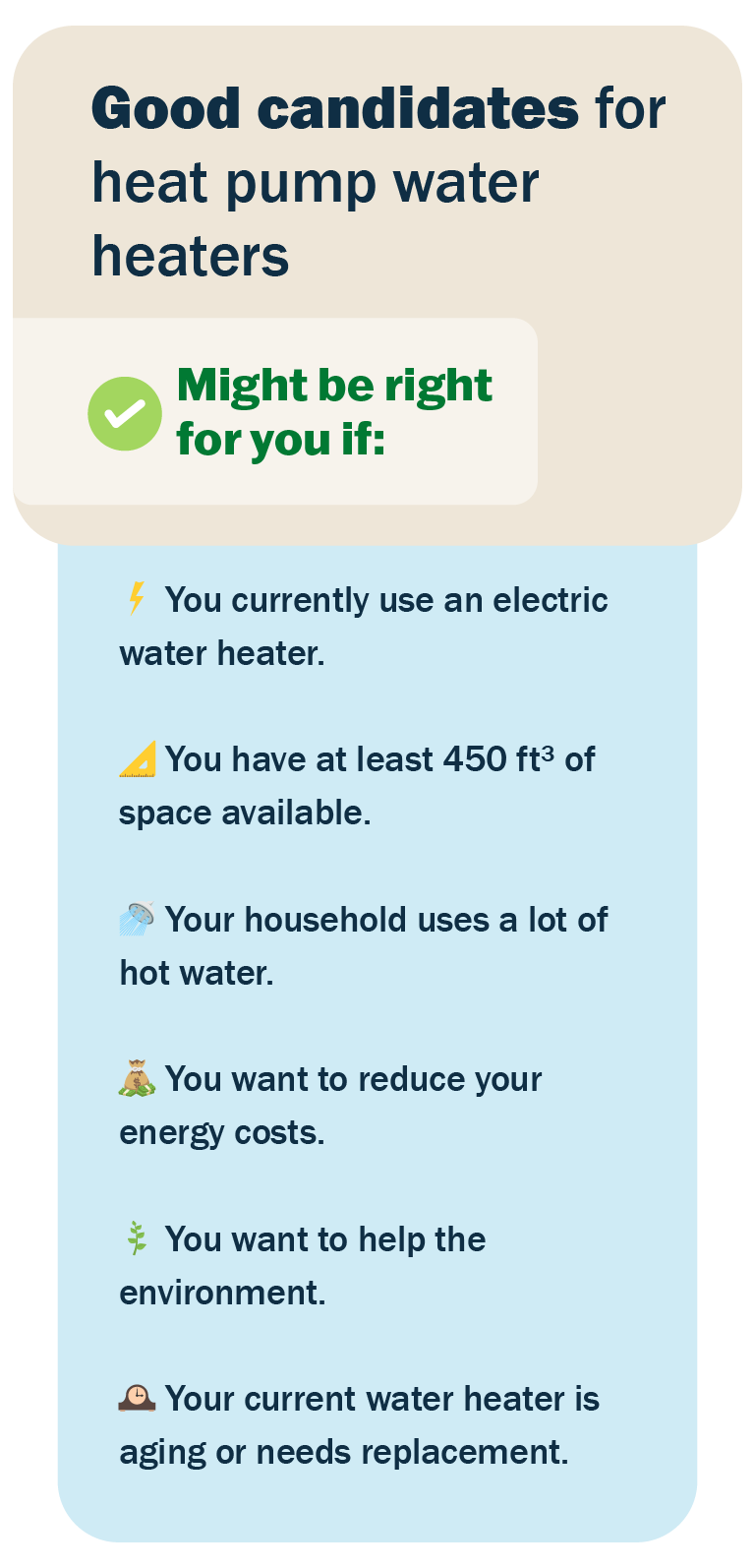

Is a Heat Pump Water Heater Right for Your Home?
A heat pump water heater might be right for you if:
- You currently have an electric water heater.
- You have at least 450 cubic feet of space in your basement, garage, or utility room.
- You use a lot of hot water in your home.
- You want to reduce your energy costs.
- You want to help the environment.
- Your current water heater is aging or needs replacement.
If you're not sure whether a heat pump water heater fits your home's needs, a qualified installer can assess your space, electrical setup, and hot water usage to help you make the best choice.
Get it installed by a Local Pro
Start Saving with A. O. Smith Heat Pump Water Heaters
A. O. Smith has been making water heaters for over 85 years and leads the industry through continuous innovation. Our ProLine® XE Voltex® series of hybrid electric heat pump water heaters uses the latest technology to help homeowners save money and help the environment.
Ready to get started? Use the water heater selector to find the right capacity for your home, then connect with a trained professional in your area for installation.
Frequently Asked Questions
A hybrid water heater combines heat pump technology with electric backup elements to heat water. It pulls heat from the air around it and transfers that heat into the tank, making it much more efficient than traditional methods.
Hybrid heaters do not work during power outages since they need electricity to run the heat pump and backup elements. Like all electric water heaters, they require power to operate and heat your water.
A hybrid heater works like a reverse air conditioner by pulling heat from the surrounding air and moving it into your water tank. When the heat pump can't meet demand or temperatures get too cold, electric backup elements automatically turn on to keep your water hot.
