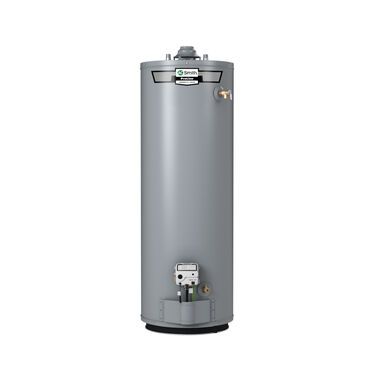

ProLine® 30-Gallon Atmospheric Vent Tall Natural Gas Water Heater

Model GCR-30R
4.7 out of 5 Customer Rating
  • bvseo_sdk, dw_cartridge, 18.2.0, p_sdk_3.2.0
  • CLOUD, getAggregateRating, 9ms
  • reviews, product
  • bvseo-msg: Unsuccessful GET. status = 'ERROR', msg = 'Not Found.';
Capacity (Gallons)
Limited Tank Warranty
Height Classification
Advanced Options
Fuel Source
First Hour Rating
Maximum BTU's
Side Loop
Diameter

  • Delivers 52-gallon first hour rating
  • 30,000 BTU input atmospheric vent design delivers up to 0.61 Uniform Energy Factor
  • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
  • Product Details
    • Delivers 52-gallon first hour rating
    • 30,000 BTU input atmospheric vent design delivers up to 0.61 Uniform Energy Factor
    • Patented eco-friendly Green Choice® Gas Burner design reduces NOx emissions by up to 33% and complies with Low-NOx emission requirements
    • Push-button piezo ignitor makes lighting pilot fast & easy
    • Intelligent electronic gas control provides precise temperature control and LED status indicator
    • Patented Blue Diamond® glass tank lining protects against corrosion
    • DynaClean™ automatic cleaning system protects against sediment build-up
    • Stainless steel Coregard™ anode rod protects against corrosion longer than ordinary anodes
    • Commercial-grade brass drain valve for durable and easy operation
    • 6-year limited tank and parts warranty

    • The ProLine® 30-Gallon Atmospheric Vent Tall Natural Gas Water Heater is designed to deliver an economical performance that can lower your energy bills and also provide long-lasting value. Featuring a 30-gallon (nominal) tank and a 32,000 BTU gas burner, the GCR-30R Standard Vent delivers a first hour rating of 62 gallons and a recovery rate of 31 gallons per hour. It carries a 6-year limited tank warranty, and meets Low NOx emission requirements. Environmentally-friendly insulation and factory-installed heat trap nipples reduce heat loss for maximum energy savings. This ProLine® water heater is designed with A. O. Smith's superior commercial-grade tank protection. Advanced tank features include stainless steel Coregard™ anode rod, Blue Diamond® glass lining and DynaClean™ automatic sediment-cleaning system, all designed to help protect the tank from the corrosive effects of water and extend the life of the water heater. A. O. Smith’s ProLine® water heaters are residential products built to commercial-grade standard and are only available for purchase through professional wholesalers and contractors.

    Specifications
    Tech Specs
    Nominal Gallon Capacity
    30 Gallons
    Rated Storage Volume
    29 Gallons
    UEF
    0.61
    Maximum BTUs
    30,000
    Power Source
    GAS
    Limited Tank Warranty
    6 Years
    Limited Parts Warranty
    6 Years
    T&P Relief Valve
    TRUE
    Water Connection Location
    TOP
    Water Connection Size
    0.75"
    First Hour Rating
    52 Gallons
    ASME Certified
    No
    Blanket Included
    No
    Destination Country
    US
    Flue Diameter
    3.00
    Fuel Source
    NATURAL
    Height to Gas Valve
    14.25
    Height to T&P
    51.00
    Ignition Type
    Pilot with Piezo Igniter
    Installation Type
    INDOOR
    Application
    RESIDENTIAL
    Product Tier
    ProLine®
    Shipping Height
    60.75
    Shipping Length
    20.38
    Shipping Width
    17.44
    Side Loop
    No
    Dimension & Venting
    Type
    Water Heater
    Height
    56.75"
    Diameter
    18 in."
    Shipping Weight
    108lbs
    Vent Type
    Atmospheric Vent
    Maintenance & Troubleshooting
    Maintenance

    Residential ProLine® Series Atmospheric Vent Application and Installation

    Residential ProLine® Series Atmospheric Vent Lighting the Pilot

    Troubleshooting

    Residential ProLine® Series Atmospheric Vent Draft Test

    Residential ProLine® Series Atmospheric Vent No Hot Water

    Residential ProLine® Series Atmospheric Vent Status Code 1 Flash

    Residential ProLine® Series Atmospheric Vent Status Code 2 Flash

    Residential ProLine® Series Atmospheric Vent Status Code 4 Flash

    Residential ProLine® Series Atmospheric Vent Status Code 5 Flash

    Residential ProLine® Series Atmospheric Vent Status Code 7 Flash

    Residential ProLine® Series Atmospheric Vent Status Code 8 Flash

    Residential ProLine® Series Atmospheric Vent Status Code Light Continuous
